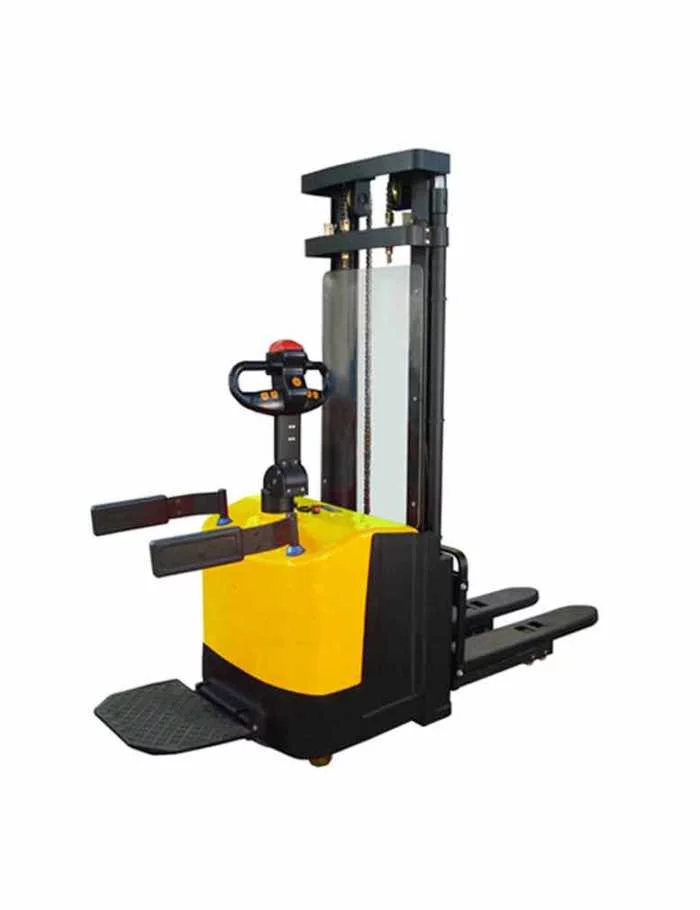

מלגזון חשמלי אדם הולך / רוכב WS03-12
מלגזון חשמלי אדם הולך/רוכב WS03-12
תיאור
מלגזון חשמלי אדם הולך/רוכב WS03-12
|
Model
|
WS03-10/12
|
|||||
|
characteristics
|
capacity
|
kg
|
1000
|
1200
|
||
|
M
|
load center
|
mm
|
600
|
|||
|
operator type
|
walkie (rider option)
|
|||||
|
EPS (electric power steering)
|
standard equipped
|
|||||
|
specifications
|
A
|
optional lifting height
|
mm
|
3000/3300/3600
|
||
|
B
|
lowered height of fork
|
mm
|
85
|
|||
|
W
|
overall fork width
|
mm
|
540(maximum 650 mm)
|
|||
|
fork length
|
mm
|
1150
|
||||
|
fork width
|
mm
|
185
|
||||
|
minim turning radius
|
mm
|
1482
|
||||
|
C
|
minim aisle width
|
mm
|
2182
|
|||
|
minim ground clearance
|
mm
|
30
|
||||
|
performance
|
maximum traveling speed
|
laden
|
Km/h
|
3
|
||
|
unladen
|
Km/h
|
3.5
|
||||
|
maximum lifting speed
|
laden
|
m/s
|
0.13
|
|||
|
unladen
|
m/s
|
0.23
|
||||
|
maximum lowering speed
|
laden
|
m/s
|
0.13
|
|||
|
unladen
|
m/s
|
0.23
|
||||
|
gradeability
|
laden
|
%
|
5
|
|||
|
unladen
|
%
|
7
|
||||
|
weight
|
serv weight without battery (3m standard)
|
kg
|
924
|
|||
|
serv weight with battery (3m standard)
|
kg
|
1134
|
||||
|
chassis
|
D
|
overall length
|
mm
|
1875
|
||
|
F
|
overall width
|
mm
|
810
|
|||
|
L
|
overall rear height
|
mm
|
1470
|
|||
|
R
|
rear body length
|
mm
|
765
|
|||
|
J
|
real body width
|
mm
|
810
|
|||
|
K
|
rear body height
|
mm
|
850
|
|||
|
N
|
handle width
|
mm
|
430
|
|||
|
G
|
mast extend height(3m/3.3m/3.6m/4m)
|
mm
|
3500/3800/4100
|
|||
|
H
|
mast lower height(3m/3.3m/3.6m/4m)
|
mm
|
1980/2135/2335
|
|||
|
wheel
|
wheel type front/rear
|
PU
|
||||
|
wheels
|
1xDriven wheel,2xUniversal wheel, 4xFront wheel
|
|||||
|
dimension of driven wheel
|
mm
|
￠248*75
|
||||
|
dimension of load wheel
|
mm
|
￠84*58
|
||||
|
dimension of universal wheel
|
mm
|
￠115×55
|
||||
|
I
|
wheel base
|
mm
|
1307
|
|||
|
driving system
|
brake type
|
electromagnetic
|
||||
|
travelling motor
|
kw
|
1.5 AC
|
||||
|
lifting motor
|
kw
|
3.0 DC
|
||||
|
voltage
|
v
|
24v
|
||||
|
battery capacity/type
|
Ah
|
135Ah/maintenance free battery
|
210Ah/industry
|
|||
|
maximum battery box size(L*W*H)
|
mm
|
650x200x575
|
||||
|
control system
|
CURTLS 1230-2402
|
|||||
|
Right reserved for technical changes and improvements.
|
||||||
