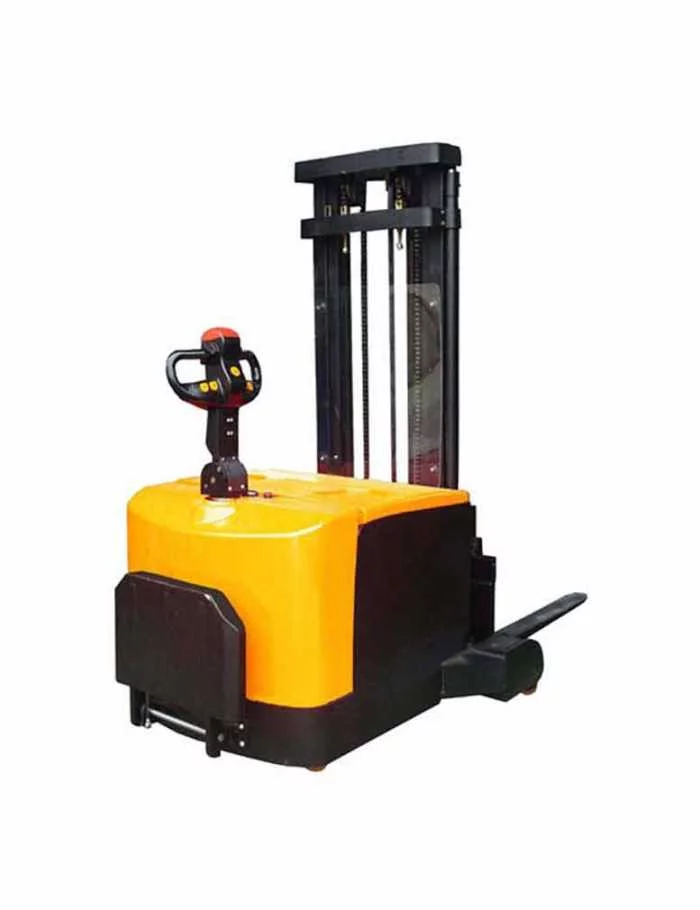

מלגזון חשמלי משקל נגדי אדם הולך WS7-12

מלגזון חשמלי משקל נגדי אדם הולך WS7-12

תיאור

מלגזון חשמלי משקל נגדי אדם הולך WS7-12

Model
WS87-12
characteristics
capacity
kg
1200
load centre
mm
500
operator type
walkie (rider option)
EPS (electric power steering)
standard equipped
specifications
A
optional lifting height
mm
3000/3300/3500
W
overall fork width
mm
adjustable (maximum 810 mm)
T
standard fork length
mm
1070
fork thickness
mm
40
E
fork width
mm
812
minimum turning radius
mm
2030
minimum aisle width
mm
2880
minim ground clearance
mm
50
performance
maximum travelling speed
laden
km/h
3
unladen
km/h
5
maximum lifting speed
laden
m/s
0.13
unladen
m/s
0.23
maximum lowering speed
laden
m/s
0.13
unladen
m/s
0.23
gradeability
laden
%
5
unladen
%
7
weight
service weight without battery (3m standard)
kg
1350
service weight with battery (3m standard)
kg
1620
chassis
R
including forks
mm
2750
F
overall width
mm
1250
L
overall rear height
mm
1480
D
rear body length
mm
1630
J
rear body width
mm
925
K
rear body height
mm
840
handle width
mm
430
G
mast extend height (3m/3.3m)
mm
3815/4115
H
mast lower height (3m/3.3m)
mm
2230
wheel
wheel type front/rear
PU
wheels
1xDriven wheel, 2xFront wheel
dimension of driven wheel
mm
¢248*75
dimension of load wheel
mm
¢205×100
driving system
brake type
electromagnetic
travelling
kw
1.5 AC
lifting
kw
3.0 DC
voltage
v
24v
battery capacity/type
Ah
270Ah/industry
maximum battery box size(L*W*H)
mm
790*208*590
control system
CURTIS 1230-2402
Right reserved for technical changes and improvements.
