עגלת משטחים חשמלית מפעיל הולך WP – 25

דף הבית » מוצרים » עגלת משטחים חשמלית מפעיל הולך WP – 25

עגלת משטחים חשמלית מפעיל הולך WP – 25

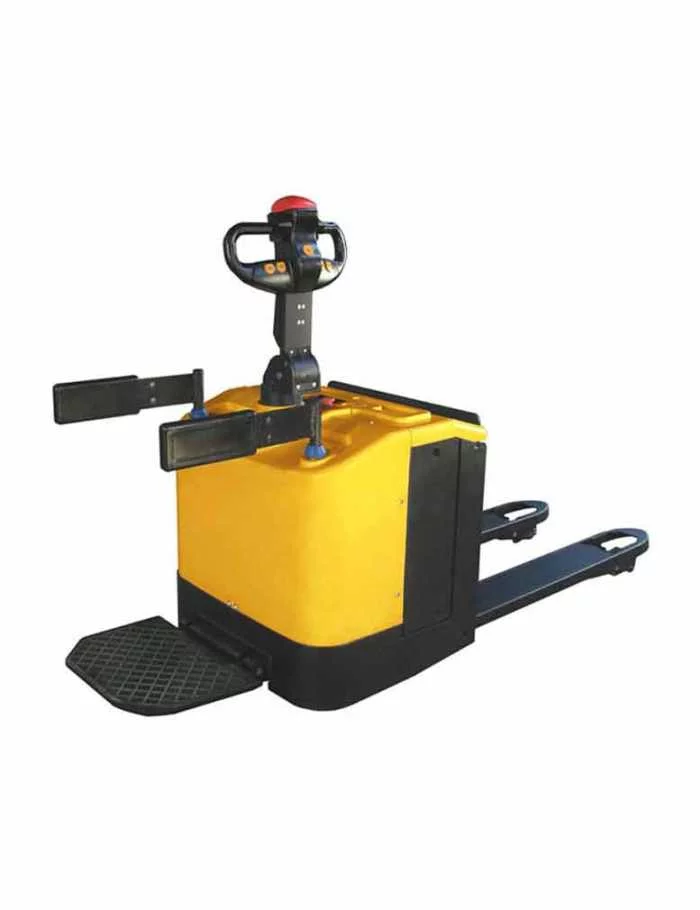

עגלת משטחים חשמלית מפעיל הולך WP-25

תיאור

עגלת משטחים חשמלית מפעיל הולך WP-25

model
WP46-25
characteristics
capacity
kg
2500
load centre
mm
600
operator type
rider
electric power steering(EPS)
standard equipped
dimensions
H
lifting height
mm
125
H1
ground clearance +fork thickness
mm
85
B1
standard fork width
mm
540/685
L1
fork length
mm
1150/1200
S
fork thickness
mm
55
e
fork width
mm
185
L
overall length
mm
1660/2070
H3
height of rider platform
mm
143
H4
rear height
mm
850
L2
rear length
mm
760
B
overall width
mm
790
wa
minimum tuming radius
mm
1710/1760
ast3
aisle width(800*1200mm pallet): horizonal/vertical
mm
2310/2410
ast3
aisle width(1000*1200mm pallet): horizonal/vertical
mm
2460/2510
performance
maximum travel speed
laden
km/h
6
unladen
km/h
6
maximum lifting speed
laden
m/s
0.056
unladen
m/s
0.06
maximum lowering speed
laden
m/s
0.057
unladen
m/s
0.059
gradeability
laden
%
5
unladen
%
7
weight
service weight without battery
kg
543
service weight with battery
kg
753
wheel
wheel(drive/load) type
PU
wheel quantity
1D+2L/1D+4L
D2
size of steering wheel
mm
¢248*75
D1
size of load wheel
mm
¢80*120(single wheel)
¢80*80(double wheel)
size of balance wheel
mm
¢115*55
wheel base
mm
1230
driving system
travelling motor
kw
1.5kw
lifting motor
kw
2kw
voltage/capacity/battery type
v/ah
24v/270ah/industry
maximum battery box size(L*W*H)
790*210*576
travelling barke
regenerate
barke
electromagnetic
control system
CURTIS/1230
Right reserved for technical changes and improvements.
