    תיאור

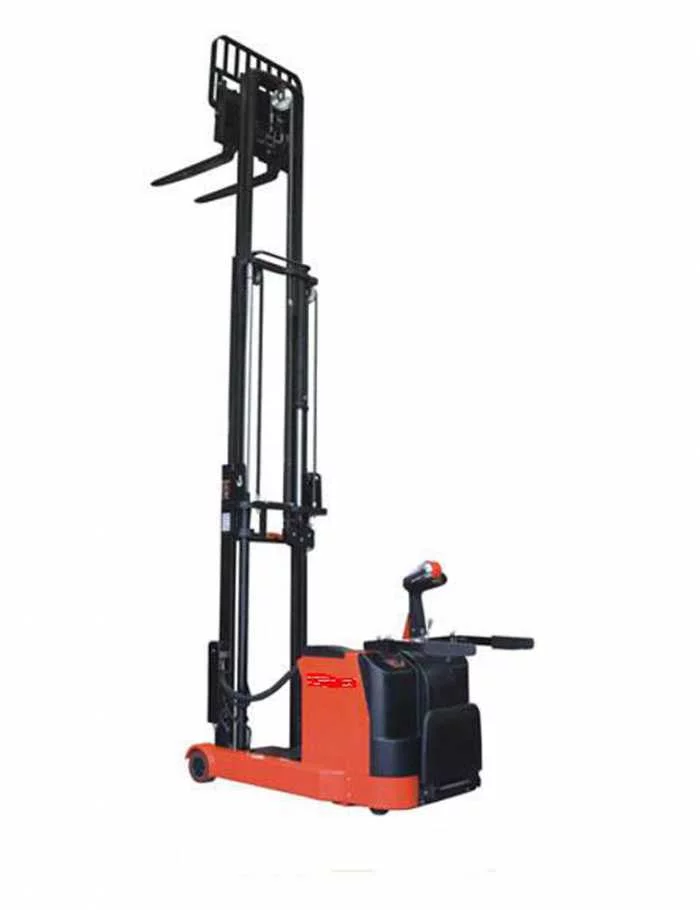

    עגלת משטחים חשמלית כולל תורןR103

    Up to h3 mm ACTUAL CAPACITY (Q) kg
    2500 1300 700
    3000 1000 600
    3700 900 500
    4500 800 400
    Load centre distance (C)mm 600 700

    1KG=2.2LB 1INCH=25.4MM
    Identification 1.2 Manufacturer's type designation CY1316 CY1318 CY1330 CY1337 CY1345
    1.3 Drive:electric(battery or mains),diesel, petrol,fuel gas,manual Electric
    1.4 Type of operation:hand, pedestrian, stand ing, seated, order-picker) Pedestrian
    1.5 Load Capacity /rated load Q (t) 1.3
    1.6 Load center distance C mm
    500
    1.8 Load distance, centre of drive axle to fork X mm 388 418
    1.9 Wheelbase y mm 1255 1355
    Weights 2.1 Service Weight Kg 1820 1850 2020 2235 2460
    2.2 Axle loading, laden front/rear Kg 1480/1640 1500/1650 1580/1740 1680/1855 1770/1990
    2.3 Axle loading, unladen front/rear Kg 1350/470 1370/480 1495/525 1655/580 1820/640
    Wheels£¬ Chassis 3.1 Tyres:solid¡¢ rubber, superelastic, pneumatic, polyurethane) polyurethane
    3.2 Tyre size, front 230×70
    3.3 Tyre size, rear 210×85
    3.4 Additional wheels(dimensions) 150×54
    3.5 Wheels, number front/rear(x=driven wheels) 1x+2/4
    3.6 Track width,front b10(mm) 620
    3.7 Track width,rear b11(mm) 993
    Basic Dimensions 4.1 Mast/fork carriage tilt forward/backward a/?¡ã) 2/4
    4.2 Lowered mast height h1(mm) 2075 2275 2095 1850 2075
    4.3 Free lift h2(mm) – – 221 1205 1490
    4.4 Lift height h3(mm) 1560 1760 2960 3660 4460
    4.5 Extended mast height h4(mm) 2145 2345 3940 4625 5430
    4.9 Height of tiller in drive position min./max.

    h14(mm)
    984/1365
    4.15 Lowered height h13(mm) 40
    4.19 Overall length l1(mm) 2025(2225) 2125(2325)
    4.20 Length to face of forks l2(mm) 867 937
    4.21 Overall width b1(mm) 1104
    4.22 Fork dimensions s/e/l(mm) 35/100/950(1150)
    4.25 Width over forks b5(mm) 200~720
    4.26 Distance between supports arms/loading surfaces b4(mm) 784
    4.28 Reach distance l4(mm) 550 580
    4.32 Ground clearance, center of wheelbase m2(mm) 59
    4.33 Aisle width for pallets 1000×1200 crossways Ast(mm) 2307 2436
    4.34 Aisle width for pallets 800×1200 lengthways Ast(mm) 2355 2478
    4.35 Turning radius Wa(mm) 1450 1600
    4.37 Length across wheel arms l7(mm) 1075 1175
    Performance Data 5.1 Travel Speed, laden/unladen km/h 5.4/6.0 6.0/7.0
    5.2 Lift speed, laden/unladen mm/s 85/122 110/165
    5.3 Lowering speed, laden/unladen mm/s 125/80 300/220
    5.8 Max.gradient performance, laden/unladen % 5/8
    5.10 Service brake Electromagnetic
    E-Motor 6.1 Drive motor rating s2 60min kw 1.5
    6.2 Lift motor rating at s3 15% kw 2.2 3.0
    6.3 Battery acc. toDIN, no 3PzS 5PzS
    6.4 Battery voltage, norminal capacity V/Ah 24/270 24/400
    Others 8.1 Type of drive control MOSFET Control
    8.4 Sound level at driver's ear acc.to EN12053 dB(A) 67
